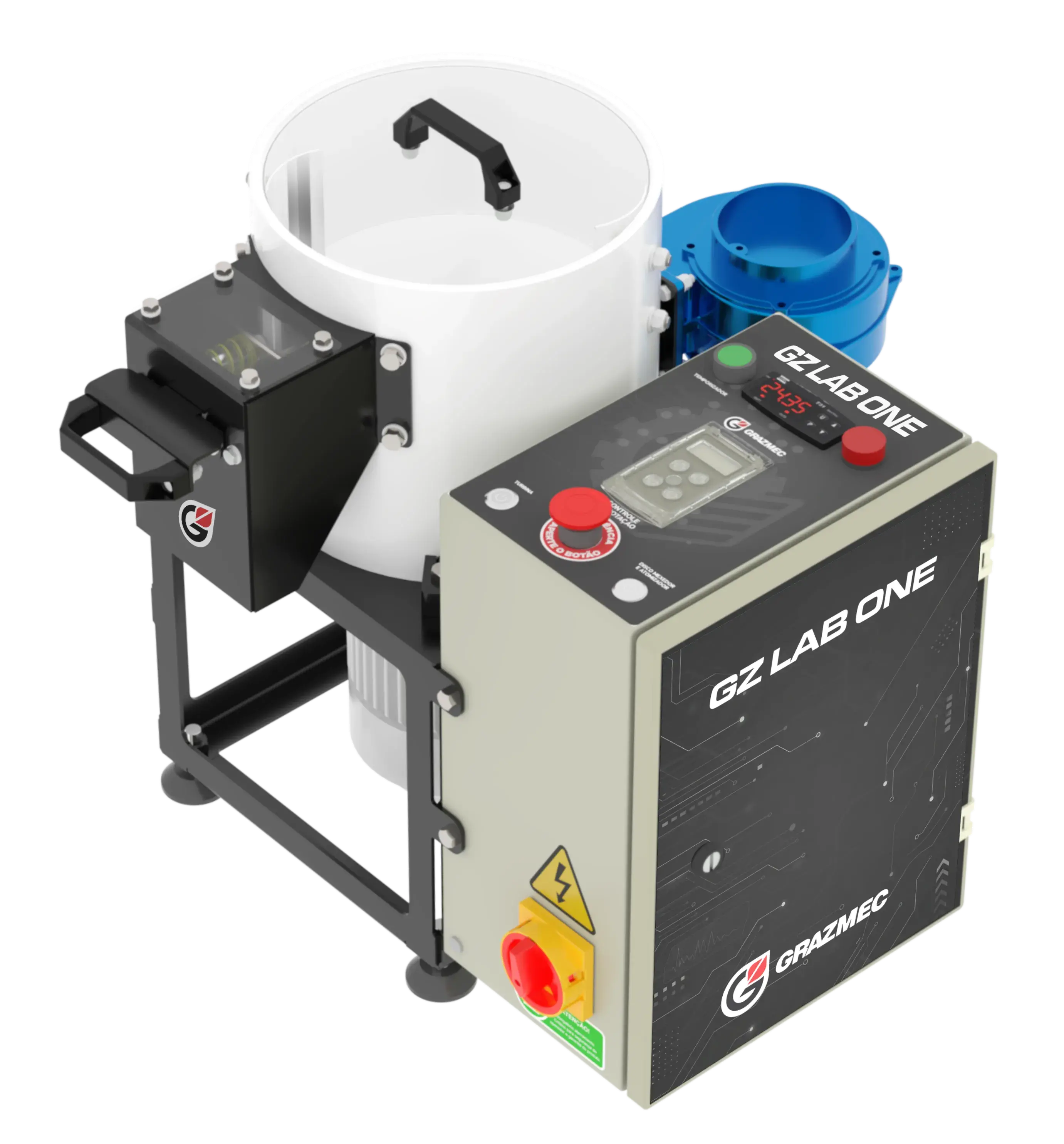

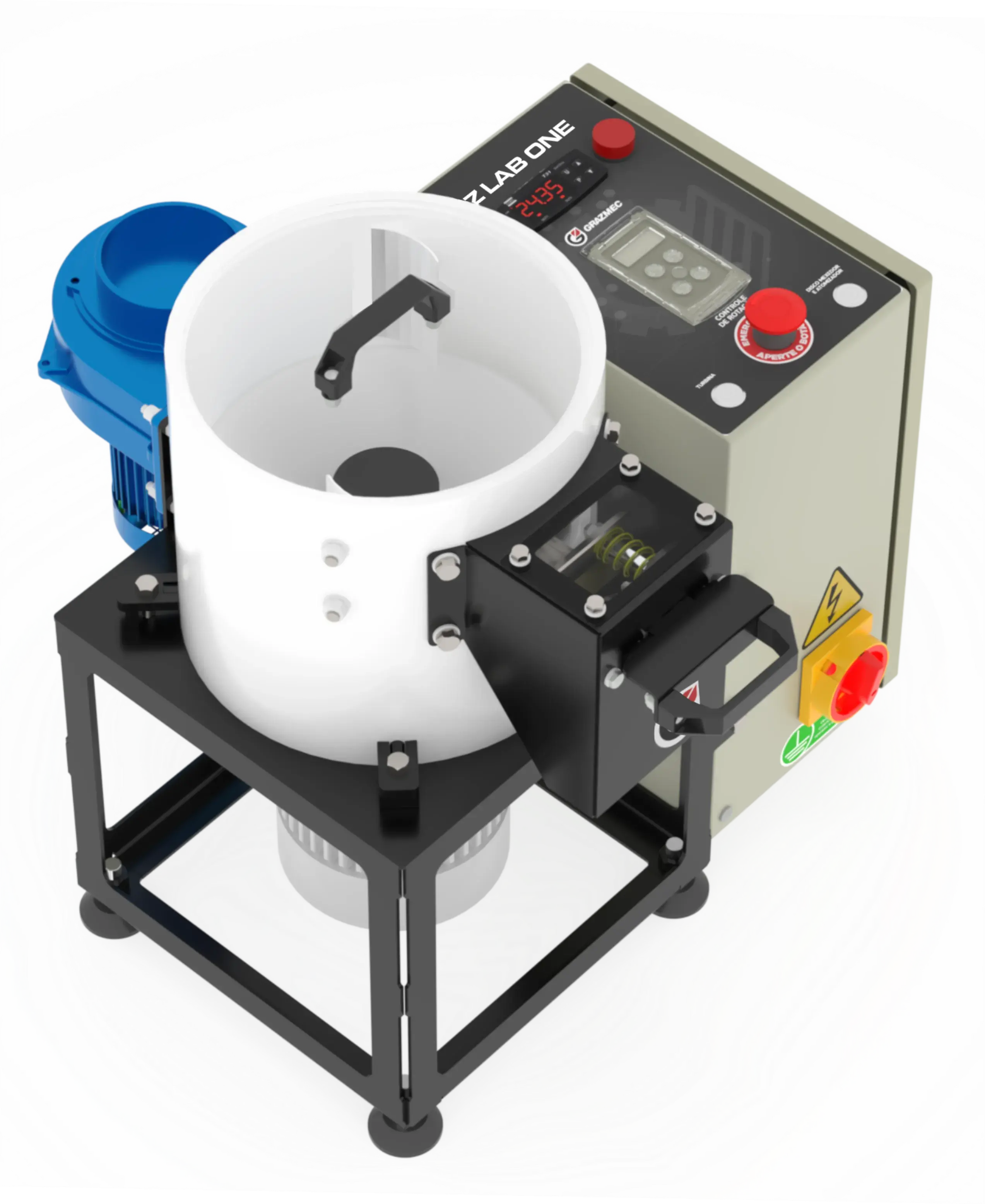

The GZ Lab One is a batch seed treatment machine designed to combine mobility, practicality, and efficiency in a compact and easy-to-operate piece of equipment.
With its lightweight and innovative structure, it is ideal for manual transportation, benchtop use, and applications that require agility without compromising treatment quality.
The equipment performs the application of liquid and powder products on seeds from various crops, using an atomizing spinner and centrifugal disc to ensure uniform distribution and excellent coating homogenization. All components that come into contact with the treatment process are manufactured from high-resistance materials such as UHMW and stainless steel, providing greater durability, corrosion resistance, and operational safety.
The GZ Lab One features a manual operating system through an ergonomic control panel equipped with easy-to-use buttons and switches. It includes rotation control through a frequency inverter, allowing greater precision in the operation of the centrifugal disc and atomizing spinner, as well as a timer for batch time control.
The equipment also features an integrated air turbine responsible for directing airflow into the treatment chamber, increasing the drying efficiency of the products applied to the seeds. Its functional structure provides a more practical, precise, and efficient treatment process for different field and laboratory needs.
Weight 38.90 kg
Height 0.58 m
Width 0.52 m
Length 0.63 m
Treatment Capacity From 0.5 to 2 kg / batch (based on soybean crop)
Treatment Types Liquids: inoculants, crop protection products, fungicides, micronutrients, polymers Powders: drying agent, graphite
Power Supply Single-phase 220 Volts / 60 Hz Frequency
Air Turbine Drive 0.16 HP electric motor
Air Turbine Flow Rate 4 m³/min
Centrifugal Disc / Atomizing Spinner Drive 0.33 HP electric motor
Liquid Application Manual, using a previously calibrated syringe
Powder Application Manual, using a previously calibrated container
Optional Items No optional items available
Standard Features - Air turbine (more efficient drying)
Optional Items - Acrylic top cover (improved process visualization)
Optional Items - Timer (accurate timed batches)
Optional Items - Rubber leveling feet (eliminates vibrations)
Optional Items - Atomizing spinner (greater efficiency in liquid application)
Optional Items - Frequency inverter: precise control of centrifugal disc rotation
