It is coupled to the tractor's third point and the mixing system is driven via the PTO, via a cardan shaft. The discharge tube auger is driven by the tractor's hydraulic system via a hydraulic motor, so the mixing system can be switched off while the seed is being discharged;
It applies liquid products and powders (graphite/drying agent) to the seed, all in the same operation;
The seed must be loaded into the hopper by big bag via forklift or winch;
The seeds are mixed in batches of 600 kg each. It is not recommended to work outside this range (neither above nor below);
Quick and easy calculation of the amount of product to be applied, without complex electrical adjustments or sampling;
Application is via gravity, through an easy-to-clean tubular drip applicator;
Fully rubberized discharge tube auger, preventing friction and mechanical damage to the seeds;
Mixing system consisting of a central auger, guaranteeing mixing in a fast and homogeneous cycle;

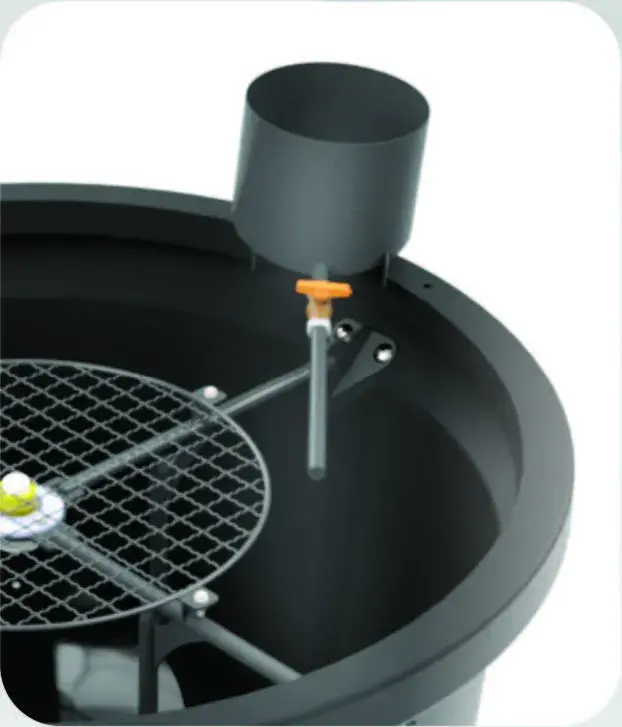

The mixing system also has a protective grid at its upper end, making it inaccessible and guaranteeing operator safety.

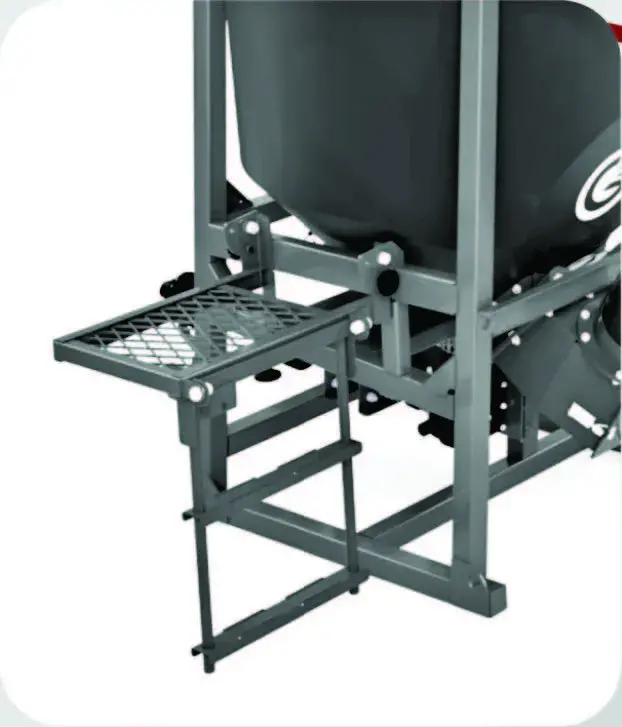

Operating platform and retractable ladder, guaranteeing quick and easy collection without the need for tools.
Reservoir for applying liquid products with a capacity of 8 liters, with an outlet valve that makes it easy to control the application time.
Overall height at rest x operation/transport 3,0m x 3,3m
Unloading height at rest x operation/transportation 2,3m x 2,6m
Height of bulk carrier at rest x operation/transport 2,0m x 2,3m
Total length 2,9 m
Overall width 1,4 m
Estimated weight 396 kg
Diameter of discharge helicoid tube 190 mm
Discharge auger drive Hydraulic motor
Maximum load capacity 600 kg
Maximum mixing capacity 600 kg / lote
Liquid tank capacity 8 L
Standard color Graphite
*PTO working speed range 400~450 rpm
*Internal stirrer speed range 160~180 rpm
*Estimated mixing time De 2 a 4 min / lote
*Estimated unloading time 2 min / lote
Product application Manual via applicator (gravity)
Minimum tractor power 50 CV
Minimum flow rate of the tractor hydraulic control 50 L/min
Tractor coupling system Lift for 3 Points, category II
Gearbox oil SAE 90 oil
Transmission oil volume 0,8 L
turbine600
Product Line Grazmec
